Product

IS600P series servo driver products are high-performance medium and small power AC servo drivers developed by Inovance Technology. This series of products has a power range of 100W~7.5kW, supports Modbus communication protocol, adopts RS-232\RS-485 communication interface, and can realize network operation of multiple servo drives with the host computer. Provides rigid table setting, inertia identification and vibration suppression functions, making the servo drive easy to use. Cooperate with the high-response servo motor including small inertia, medium inertia ISMH series 2500 line incremental encoder, and the operation is quiet and stable. It is suitable for automatic equipment such as placement machines, printed circuit board punching machines, handling machinery, food processing machinery, conveying machinery, etc. to achieve fast and accurate position control, speed control, and torque control.

naming convention

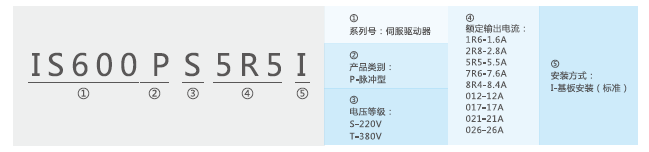

Servo Drive Rules

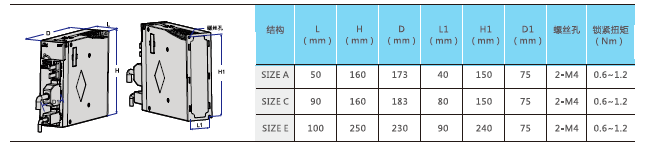

Servo drive appearance and installation dimensions

IS600P Matching Servo Motor Product Overview

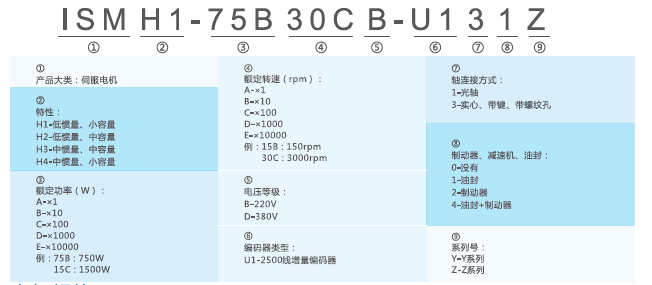

naming convention

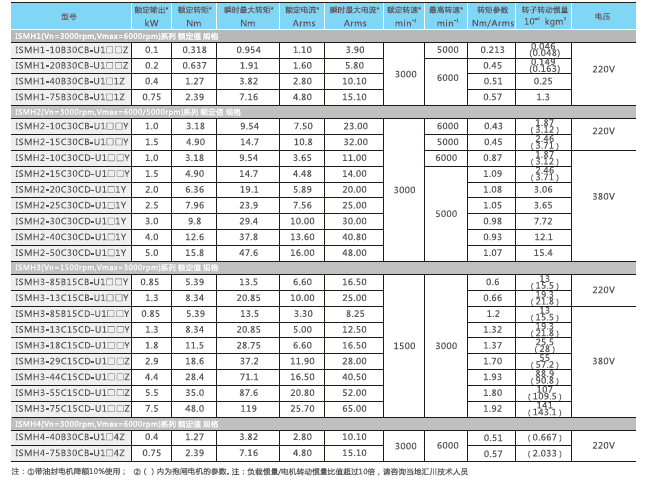

Motor Specifications
